Stainless Steel Wire Mesh

Stainless Steel Wire Mesh

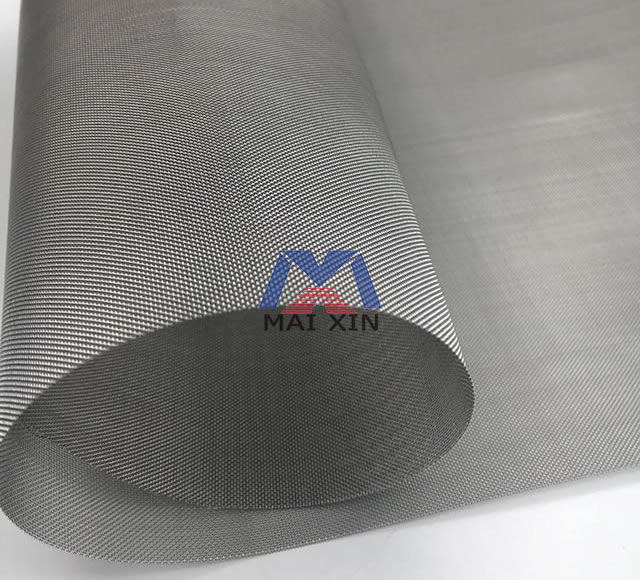

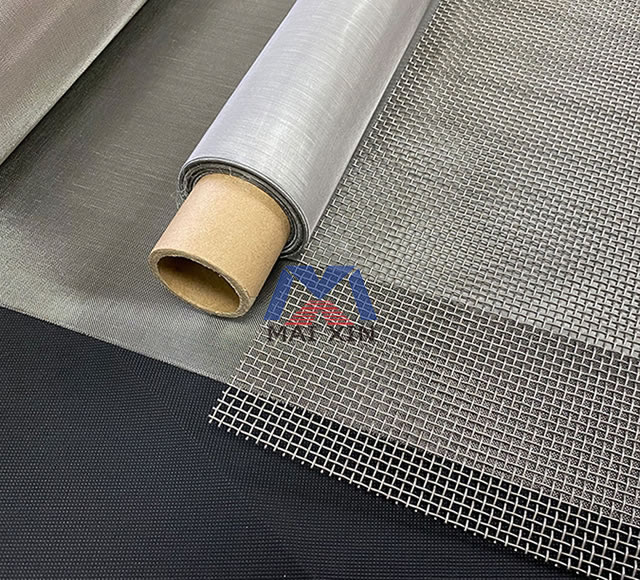

Stainless steel wire mesh is also called stainless steel wire cloth, Stainless steel woven wire mesh, Stainless steel filter mesh,used in a wide variety of industries since it is one of the most common materials for woven wire mesh products besides mild steel and galvanized steel with different properties. with its the excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food, pharmaceuticals, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc.

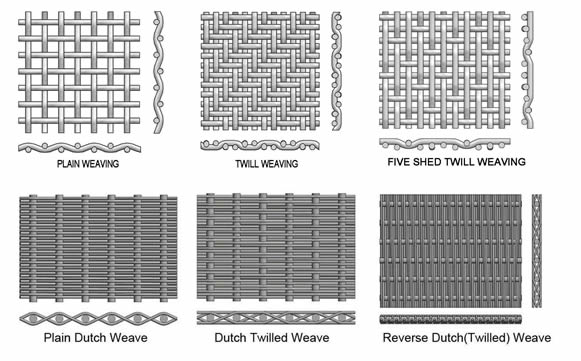

Weaving Type: plain weave, twill weave, plain dutch weave, dutch twill weave,etc.

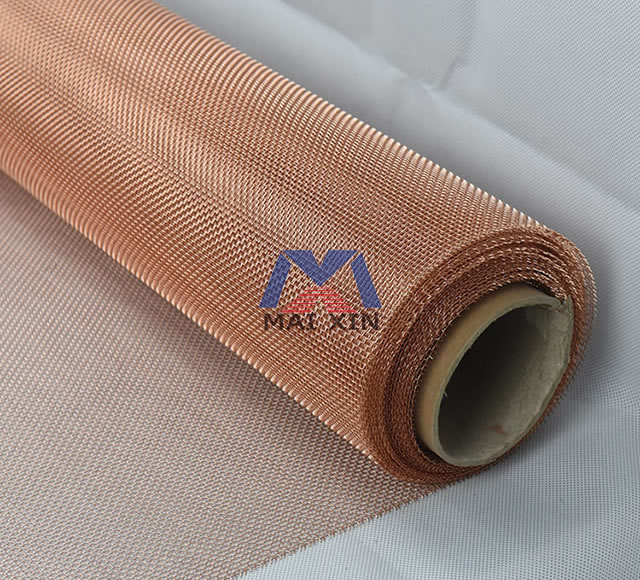

Material: SS 201, 202, 304, 316, 316L, 321, 430, 310S, 2205, 2207, 904L etc. copper wire.
Roll width: 1m, 1.22m, 1.3m, 1.6m ,2m, 3m, customization available .
Roll length: 30m, 60m, customization available.

Plain Weave:
also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Material: SS 201, 202, 304, 316, 316L, 321, 430, 310S, 2205, 2207,904L etc. copper wire.
Roll width: 1m, 1.22m, 1.3m, 1.6m ,2m, 3m, customization available .
Roll length: 30m, 60m, customization available.

Twill Weave:
In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.

Material: SS 201, 202, 304, 316, 316L, 321, 430, 310S, 2205, 2207,904L etc. copper wire.
Roll width: 1m, 1.22m, 1.3m, 1.6m ,2m, 3m, customization available .
Roll length: 30m, 60m, customization available.

Five Heddle Weave Wire Cloth:
Each warp wire alternately goes under and above each one and four weft wires, and each weft wire goes under and above each one and four warp wires alternately; Each warp wire alternately goes under and above each two and three weft wires, and each weft wire goes under and above each two and three warp wires alternately.

This special weaving style makes it possible to produce open meshes with high flow rates combined with great mechanical stability. It creates a smooth surface for easy removal of filter cake and trouble-free cleaning of the filter media. Five-Heddle cloths have proven especially applicable in drum filter equipment and in disc filters where the buildup of the filter cake, the removal and the cleaning are performed incontinuous cycles.

Five Heddle Weave Wire Cloth offers high flow rates and it is suitable for high mechanical loads, featuring a lightly structured mesh surface.

Five Heddle Weave Wire Cloth is widely used in drainage filtration, undercurrent filtration and be also suitable for dehydration in paper-making and chemical fillers.

Obtainable with us in different size and shape as per requirement and of our customers

Material: SS 201, 202, 304, 316, 316L, 321, 430, 310S, 2205, 2207,904L etc. copper wire.
Roll width: 1m, 1.22m, customization available .
Roll length: 30m, 60m, customization available.

Plain Dutch/ Twill Weave:

Similar with plain/ Twill weave, just the weft and warp wire have different wire diameter and different mesh size.

Material: SS 201, 202, 304, 316, 316L, 321, 430, 310S, 2205, 2207,904L etc. copper wire.
Roll width: 1m, 1.22m, 1.3m, 1.6m ,2m, 3m, customization available .
Roll length: 30m, 60m, customization available.

Reverse plain dutch weave, Reverse twill dutch weave

Reverse dutch weave is one of special weave wire cloth used in the filtration field of plastic industry, chemical industry, etc. Comparing with the normal dutch weave, warp wires are much more than the weft wires in certain unit area, with a larger absolute ratio, so this weave can supply better filtration rate.

Material: SS 201, 202, 304, 316, 316L, 321, 430, 310S, 2205, 2207, 904L etc. copper wire.
Roll width: Size: width is 40mm-500mm, the widest width can be 1000mm.
Roll length: Normally, the roll length is 10m-30m, pecial requirement can be customized.
