Wedge Wire Filter Pipe

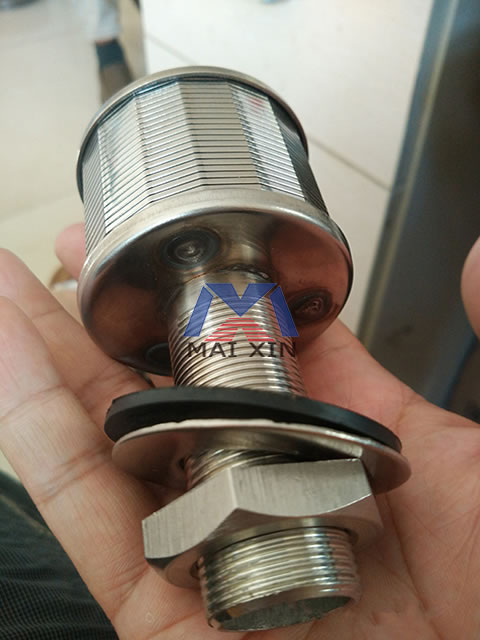

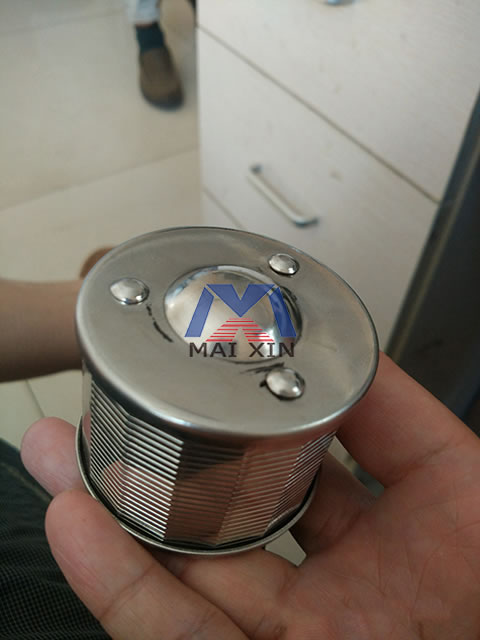

Wedge Wire Filter Pipe are a type of component used for filtration or distribution in various water treatment applications. They are made from robust Vee wires and support rods. Continuous welding technology ensured a strong and durable structure. Besides, backwashing and cleaning processes can easily remove debris. Multiple uniformly installed nozzles are widely applied in scenarios requiring filtration, such as gravity sand filters and water softeners, significantly improving the efficiency of the water distribution system. Whether filtering sediment or particulate matter, wedge wire nozzles performs well in small systems. Choosing wedge wire nozzles is not just about selecting a product; it's about choosing an efficient solution for the water treatment industry.
Product Feature: Easy leakage, wear resistance, corrosion resistance.
| Standard Specification Data Sheet | |||||||||||||||
| Material | Slots (mm) | Outline Dimension (mm) | Accessories | Water Flow Rate | |||||||||||
| OD | Length | ||||||||||||||

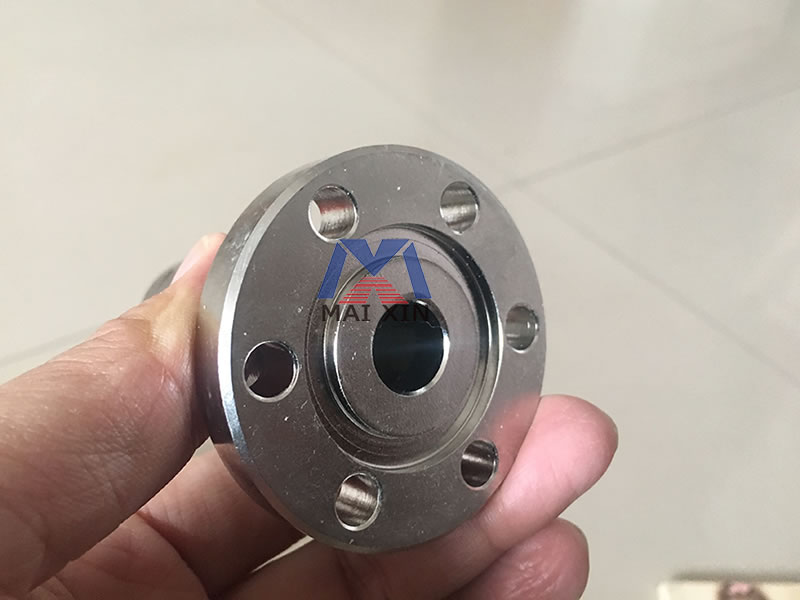

| SS304, 316, 316L, 321, 904L, 2205 etc. | 10μm-100μm | 20-100mm | 20-1000mm | Plain beveled ends, male/female threaded, flange, close up | 0.5t/h-5t/h. | ||||||||||
| Usages | Seawater desalination，softening processes in domestic water, Condensate polishers, Softeners, Carbon filters, etc. | ||||||||||||||
| Wedge wire |  | Width | 0.8mm | 1.2mm | 1.5mm | 1.8mm | 2.5mm | 3.2mm | 3.3mm | 4mm | |||||
| Height | 1.9mm | 2.8mm | 2.5mm | 4.7mm | 4.3mm | 5.1mm | 8mm | 6mm | |||||||
| Support rod |  / | Width | ／1.8mm | 1.8mm | 1.8mm | 2.3mm | 2.3mm | 3mm | 3mm | 4mm | |||||
| Height | 12mm | 19mm | 25.4mm | 4mm | 3 mm | 7mm | 6mm | 8mm | |||||||
 | OD | 4mm – 20mm | |||||||||||||
Special specifications can be customized according to customer requirements.
